VSI Sand Making Machine

Feeding Size (mm): 30-50mm
Capacity(t/h): 120-520t/h

Buyer Promotion ← (June.07-June.30 Expo 2022) 50$-200$ Coupons

Send Inquiry Email +86-18595689287

Introduction Advantage Specification Projects

The VSI sand making machine is mainly used for construction sand making, and is an advanced equipment for the production of artificial sand.

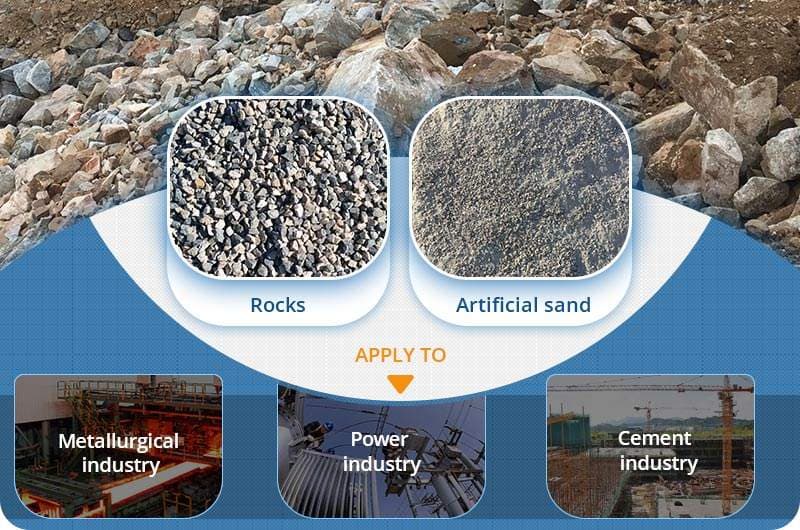

(Applicable Materials)

The VSI sand making machine is a third-level crushing equipment that uses high-speed rotating materials to crush each other and the materials to be crushed by friction (rock-to-rock). It is designed for highways, high-speed railways, high-rise buildings, municipal, hydropower dam construction, The concrete mixing plant provides high-quality sand and gravel aggregates and is the main equipment in the field of artificial sand making and stone shaping.

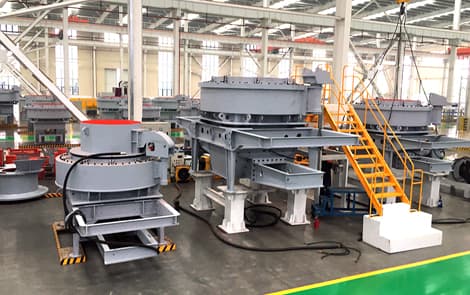

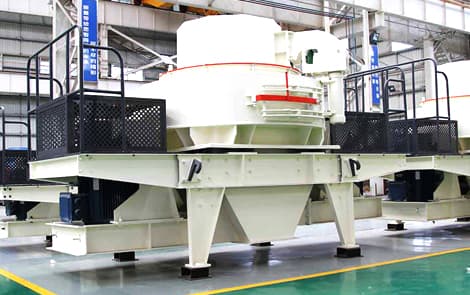

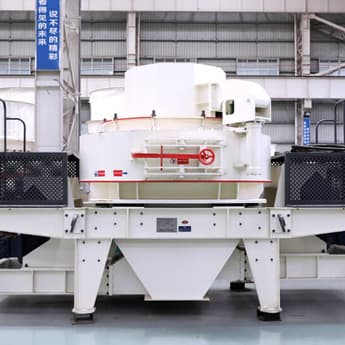

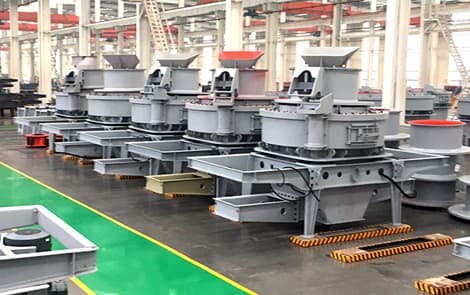

(VSI Sand Making Machine)

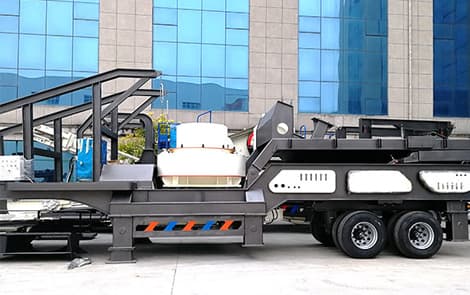

(Mobile VIS >>)

Advantage

Large processing capacity and high output.
The product has excellent grain shape.
Hydraulic device easy to maintain and easy to operate.

Technical Data

Model		VSI 7611	VSI 8518	VSI 9526	VSI 1140	VSI 1145
Capacity	cascade and central feeding	120-180	200-260	300-380	450-520	500-640
Capacity	Fully central feeding	60-90	100-130	150-190	225-260	250-360
Max. feeding size(mm)	Soft material	<30	<35	<40	<45	<45
Max. feeding size(mm)	Hard material	<25	<30	<35	<40	<40
Rotation speed(r/min)		1700-1890	1520-1690	1360-1510	1180-1310	1100-1310
Double motor power(kw)		110-150	180-220	264-320	400-440	400-440
Overalldimension LxWxH(mm)		3850x2136x2360	4564x2400x2661	5020x2535x3050	5034x2760x3170	5100x2790x3320
Voltage		380V.50HZ
