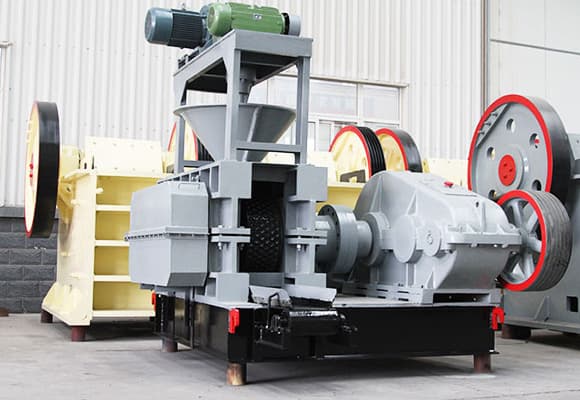

Dry Powder Briquette Machine

Capacity(t/h): 1-3.5
Power(kw): 37-55

Buyer Promotion ← September.01-30 Expo 2023 Pay $200 as $300, Pay $300 as $500

Send Inquiry Send Email +86-18595689287

Introduction Advantage Specification Projects

The dry powder briquetting machine equipment is mainly used for briquetting and agglomerating materials without moisture.

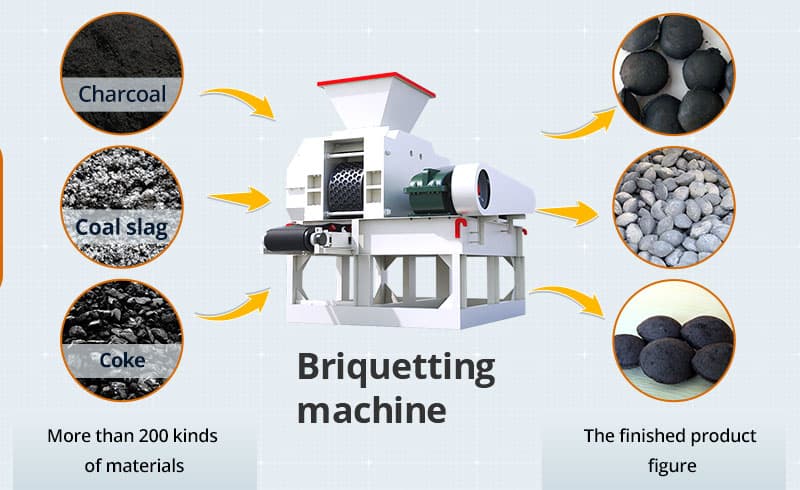

(Some applied machines of briquetting machine)

Some materials cannot be added with water during the ball pressing process. At this time, a dry powder ball press is required, such as: quicklime powder, magnesium oxide powder, copper concentrate, chrome ore powder, lead-zinc scrap, bauxite, non-ferrous metal powder , Refractory materials, ceramic materials, etc. are made into balls with higher capacity through high strength and high pressure.

Click Here for Price

↑↑↑

Advantage

In the process of pressing the ball there is no need to add water
Stress.
Can be equipped with forced unloading device.
The main engine speed is adjustable.
Simple operation.
Low maintenance cost.

Technical Data

Model	GMG299	GMG367	GMG367	GMG528	GMG528	GMG650	GMG850
Capacity (t/h)	0.5-1	2-3	3-4	4-5	5	5-6	6-7
Diameter(mm)	Φ299	Φ367	Φ367	Φ528	Φ528	Φ650	Φ850
Pre-press motor	7	11	11	15	15	15	22-30
Motor power(kw)	18.5	37	45	45	55	75	90
Reduction gear	ZQ650	ZQ850	ZQ850	ZQ850	ZQ1000	ZQ1250	ZQ1450
Material of roller	9CY2Mn	9CY2Mn	9CY2Mn	9CY2Mn	9CY2Mn	9CY2Mn	9CY2Mn
Bearing model/quantity	7522 8Sets	2097730 4Sets	2097730 4Sets	20997730 4Sets	2097736 4Sets	2097744 4Sets	2097752 4Sets
Shape of product	Self decisi on	Self decisi on	Self decisi on	Self decisi on	Self decision	Self decision	Self decisi on
