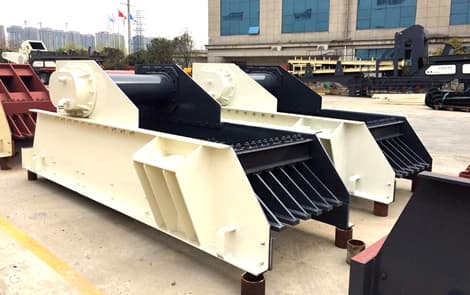

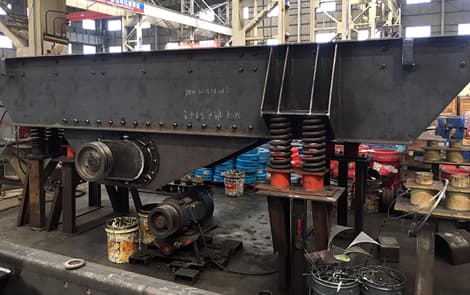

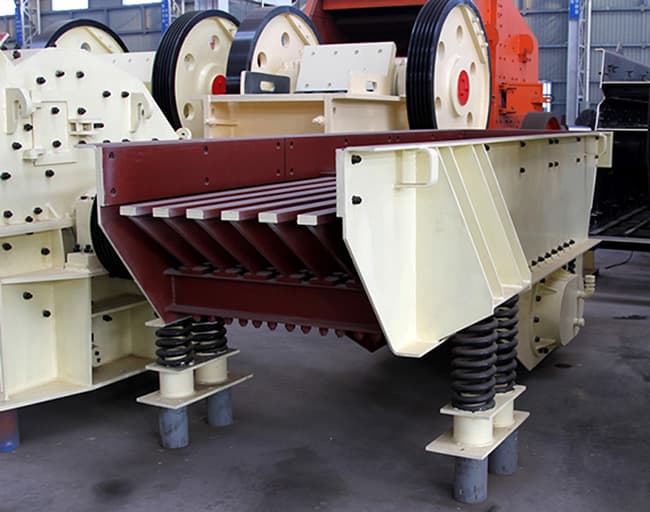

Vibrating Feeder

Feeding Size (mm): 300-1200
Capacity(t/h): 80-1500

Buyer Promotion ← September.01-30 Expo 2023 Pay $200 as $300, Pay $300 as $500

Send Inquiry Send Email +86-18595689287

Introduction Video Specification Projects

The vibrating feeder (vibratory feeder) is suitable for bulk and granular materials such as limestone, calcite, dolomite, barite, talc, gypsum, quartz stone, river pebble, granite, basalt, construction waste, iron ore, coal, slag, etc.

Vibrating feeder refers to a kind of equipment that can uniformly, regularly and continuously feed block and granular materials from the storage bin to the receiving device.

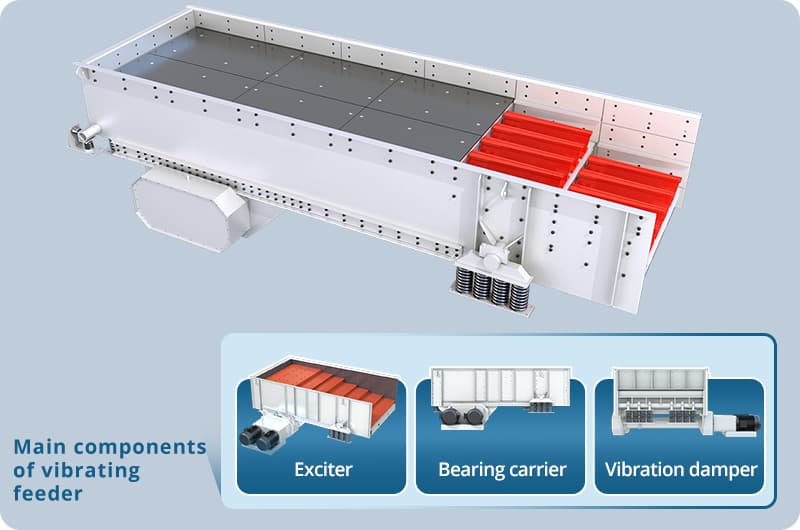

((Main components of vibrating feeder)

Video of Vibrating Feeder:

Advantage

It can prevent the material from clogging
Stable vibration and reliable work
High-quality motor low noise low power consumption

Technical Data

Model	Feed Opening (mm)	Max. Feeding size(mm)	Capacity (t/h)	Power (kw)	Weight (t)	Overal Dimension (mm)
ZSW3090	3000X900	400	80-120	7.5	3.9	3110X1800X1600
ZSW3896	3800X960	500	120-210	11	4.2	3850X1950X1630
ZSW4211	4200X1100	650	180-400	15	4.8	4400X2050X1660
ZSW4911	4900X1100	650	280-500	15-18.5	5.6	5200X2050X1700
ZSW4913	4900X1300	800	300-550	22	6.7	5200X2350X1750
ZSW6016	6000X1600	1020	500-900	30 45	10.3	6160X2918X2292
