Compound Cone Crusher

Feeding Size: 85mm
Capacity(t/h): 45 - 91

Buyer Promotion ← September.01-30 Expo 2023 Pay $200 as $300, Pay $300 as $500

Send Inquiry Send Email +86-18595689287

Introduction Video Specification Projects

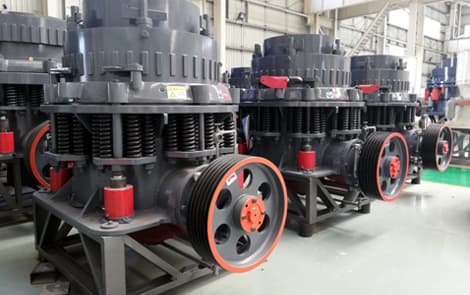

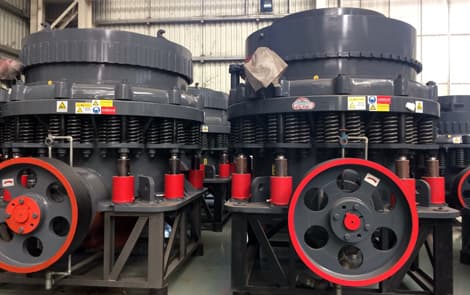

The compound cone crusher is a comprehensive cone crusher with spring and hydraulic cylinder in, It can be used to crush medium-hard and hard materials.

(Applied areas)

When Symons cone crusher works, the motor drives the eccentric sleeve rotating through the V-belt, the large pulley, the transmission shaft, the bevel gear, and the large bevel gear.

(Working principle)

(Mobile portable Cone crusher >> )

Video of Compound Cone Crusher:

Advantage

It can quickly adjust the size of discharging material.
Provide spring protection device.
The internal structure has good sealing performance.

Technical Data

Model	Spec.	Type of chamber	Diameter of cone (mm)	Adjusting range of output (mm)	Recommend Min. output (mm)	Max. Feeding size(mm)	Capacity (t/h)	Power (kw)	Weight (kg)	Overall dimension (mm)
PYFB900	3'FT	Standard Narrow	900	9-22	102	85	45-91	75	9980	2656x1636x2241
		Sandard Coarse		13-38	175	150	59-163
		Standard Exvad wide		25-38	178	150	118-163
		Short head Narrow		3-13	41	35	27-90		10530
		Short head Medium		3-16	76	65	27-100
		Short head Coarse		6-19	102	85	59-129
PYFB1300	4.25'FT	Standard Narrow	1295	13-31	137	115	109-181	160	22460	2983x1866x3156
		Standard Medium		16-38	210	178	132-253
		Standard Coarse		19-51	241	205	172-349
		Standard Extradwide		25-51	259	220	236-358
		Short head Narrow		3-16	64	54	36-163		22590
		Short head Medium		6-16	89	76	82-163
		Short bead Coarse		8-25	105	89	109-227
		Short head Extra wide		16-25	133	113	209-236
PYFB1600	5.5'FT	Standard Narrow	1676	16-38	209	178	181-327	250	43270	3941x2954x3771
		Siandatd Medium		22-51	241	205	258-417
		Siandard Coarse		25-64	269	228	299-635
		Standard Ext rad wide		38-64	368	313	431-630
		Short head Narrow		5-13	70	60	90-209		43870
		Short head Medium		6-19	89	76	136-281
		Short bead Coarse		10-25	133	113	190-336
		Short head Extra wide		13-25	133	113	253-336

Related Projects

Sinogomine factory is the one with almost 20 years of manufacturing experience in manufacturing crushing machinery the total factory area reached 230000 square meters of which the workshop area was 112000 square meters our main products are stone crushers and briquette press machines.
