Mobile VIS Crusher

  • Feeding Size (mm): 300×1300mm
  • Capacity(t/h): 10-65m3/h
Buyer Promotion ←         September.01-30 Expo 2023 Pay $200 as $300, Pay $300 as $500
Send Inquiry Send Email +86-18595689287

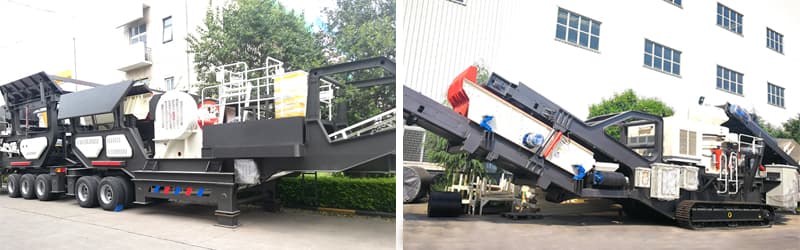

The mobile crushing station is mainly used in construction projects, highways, railways, hydropower projects and other mobile stone operations, especially in urban demolition and construction waste treatment projects.
The mobile crushing station is flexible, convenient and highly maneuverable, which can save a lot of infrastructure and relocation costs; it can crush materials on site and move with the advancement of the raw material mining surface, thereby greatly reducing the transportation cost of materials. The classification of mobile crushing stations mainly includes: mobile jaw crushing station, mobile impact crushing station, mobile cone crushing station, impact mobile crushing station, mobile screening station, crawler hydraulic drive mobile station and tire mobile crushing station.


↑↑↑

Video of Mobile VIS Crusher:

Advantage

  • Strong mobility and strong adaptability.

  • Integrated complete unit and flexible combination.

  • Reduce the cost of material transportation.

Technical Data

MOBILE JAW CRUSHER TECHNICAL PARAMETERS
Model GM938HD80 GM1149HD98 GM1349HD110 GM1349HD125
Jaw Crusher HD80 HD98 HD110 HD125
Maximum Feeding Size (mm) 500 550 660 800
Capacity (t/h) | 85-275 110-350 215-510 280-650

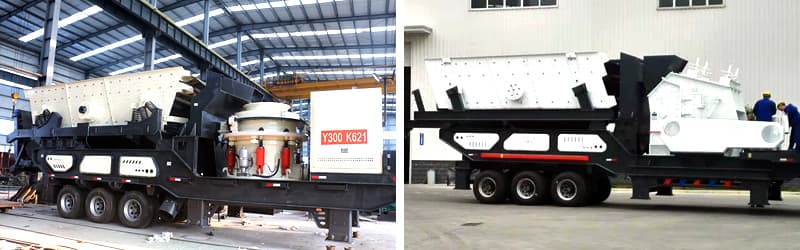

CONE CRUSHER & VIBRATING SCREEN TECHNICAL PARAMETERS
Model GM3S154PSG09 GM3S185PSG130 GM3S216HP300
Weight(t) 34.5 49.5 41
Cone crusher PSG09 PSG130 HP300
Discharging belt conveyor B650x 15M x2 B800x 15Mx2 B800x 15Mx2


MOBILE IMPACT CRUSHER TECHNICAL PARAMETERS
Model GM938F1210 GM938FW1214   GM1149F1315 GM1349HD1110
Weight(t) 39 44 54 62
Tire Configuration PF-1210 PF-1214 PF-1315 HD1110
The Maximum Feeding Size(mm) 350 350 500 400
Capacity(t/h) 70-130 100-180 130-250 112

IMPACT CRUSHER & VIBRATING SCREEN TECHNICAL PARAMETERS
ModelGM 3S184F210 GM3S185F214 GM3S216F315 GM3S184HD1110
Tyre Configuration biax fitted triaxial fitted triaxial fitted triaxial fitted
Impact crusher PF-1210 PF-1214 PF-1315 HD 1110
Note: processing capacity may vary with different materials and feeding sizes.
