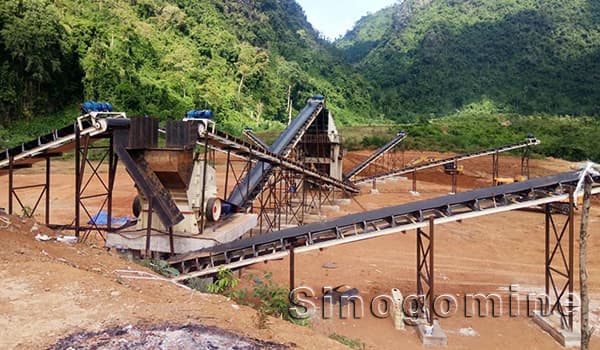

150-200T/H Limestone Crushing Plant
-
Material: Limestone;
-
Max. Feeding Size:630mm;
-
Output Size: 0-5mm, 5-10mm, 10-20mm, 20-40mm

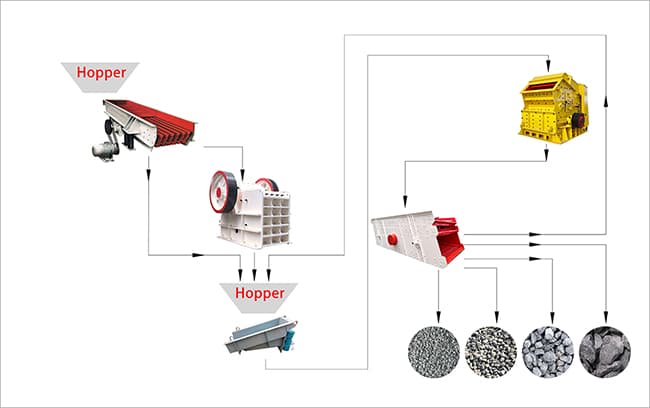

Solution 1:Stationary solution
-
1.Vibrating Feeder deliver Limestone into Jaw Crusher.
-
2.In Jaw Crusher, rock was crushed into <170mm, this is coarse crushing.
-
3.Stock Pile max. the full plant production capacity.
-
4.<170mm rock would be crushed again in Impact Crusher, this is medium and fine crushing stage.
-
5.Vibrating Screen separate the discharging sizes into: >40mm returns back, 0-5mm, 5-10mm, 10-20mm and 20-40mm are final output sizes.
-
6.Other
Related Machines
Solution 2:Mobile solution
Mobile crushing solutions are also available! You just need to tell our engineer your demand, and we will equip you the right mobile crushers with low energy consumption, low cost, and high efficiency.
Gomine mobile crushing plant has exclusive benefits you cannot resist:
1. Easy access to constantly moving working environment
2. Shorter transportation time and lower installation cost
3. Versatile body combining alternative equipment, meet customers personalized needs
4. World-class quality, cutting-edge technology, Chinese price
5. Globalization customer site service 6. Easy to resale and higher resale value
