Impact Crusher

Feeding Size (mm): 600
Capacity(t/h): 50-350

Buyer Promotion ← September.01-30 Expo 2023 Pay $200 as $300, Pay $300 as $500

Send Inquiry Send Email +86-18595689287

Introduction Video Specification Projects

It is mainly used for fine crushing operations in the stone production line. The crusher cooperates to crush.

The impact crusher is mainly used in the fields of building materials, highways, railways, hydropower projects, etc. It can be configured in a variety of forms according to the types, scales and requirements of finished materials.

Get A Free Quote

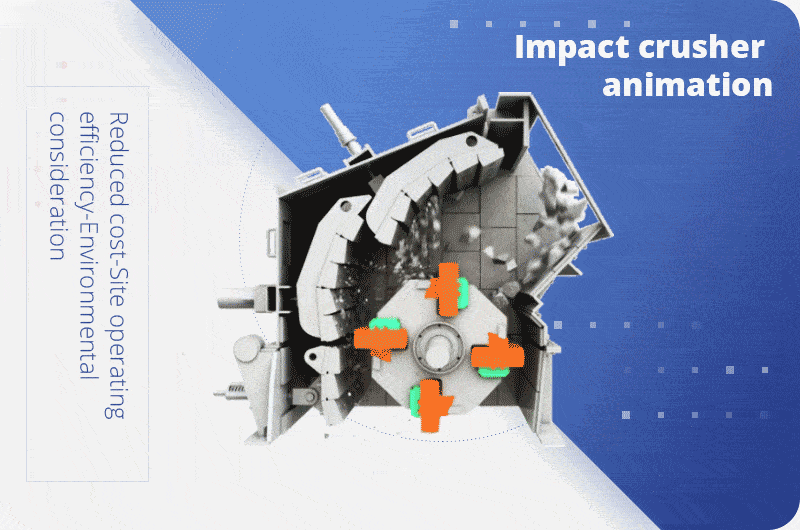

The impact crusher working principle: the impact crusher is named according to the working principle, that is, the material is crushed by the principle of impact crushing. It is a crusher equipment that is finer than the jaw crusher.

(Horizontal shaft impact crusher)

Video of Impact Crusher:

Advantage

Mature technology and stable operation
Large adjustable range of discharge particle size
The finished product has better grain shape

Technical Data

Model	Specificati on (mm)	FeedOpeni ng (mm)	Max. Feeding size(mm)	Capacity (t/h)	Model of motor	Power (kw)
PF-1010	Φ1000X1050	400X1080	300	50-90	Y315S-6	75
PF-1210	Φ1250X1050	400X1080	300	70-130	Y315L1-6	110
PF-1214	Φ1250X1400	400X1430	300	90-180	Y315L2-6	132
PF-1315	Φ1300X1500	680X1520	350	120-250	Y2-355M2-6	200
PF-1320	Φ1300X2000	680X1570	500	160-350	Y2-355M2-6	280
PFV-1010	Φ1000X1050	400X1030	200	35-60	Y315S-6	75
PFV-1210	Φ1250X1050	570X1030	250	70-140	Y315L1-6	110
PFV-1214	Φ1250X1400	570X1430	250	90-190	Y315L2-6	160
PFV-1315	Φ1300X1500	625X1530	300	150-280	Y2-355M2-6	200

Get A Free Quote

Related Projects

Sinogomine factory is the one with almost 20 years of manufacturing experience in manufacturing crushing machinery the total factory area reached 230000 square meters of which the workshop area was 112000 square meters our main products are stone crushers and briquette press machines.
