Cone crusher and impact crusher are both crushing equipment, many people are confused when purchasing them. What is the difference between cone crusher and impact crusher? Is it only difference in appearance? In fact, there is a big difference between cone crusher and impact crusher. Let’s learn about it.

Cone crusher and impact crusher both are secondary crushing equipment, secondary crushing is especially important for making graded material that is going on to be used on government projects.

The main difference between cone crusher and impact crusher is the shape of the crushing chamber, of course, there are also differences in working principle, structure and application, the following will be explained in detail from these aspects.


1. Working principle

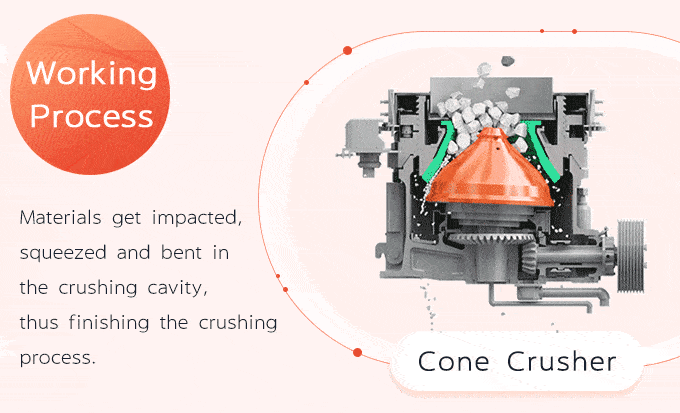

The working principle of cone crusher is that when the material enter the cone crushing chamber, it is subjected to certain forces such as extrusion, stretching and shearing, which causes the material to become broken. The material produced by cone crusher is generally fine powder or medium-fine crushed material.

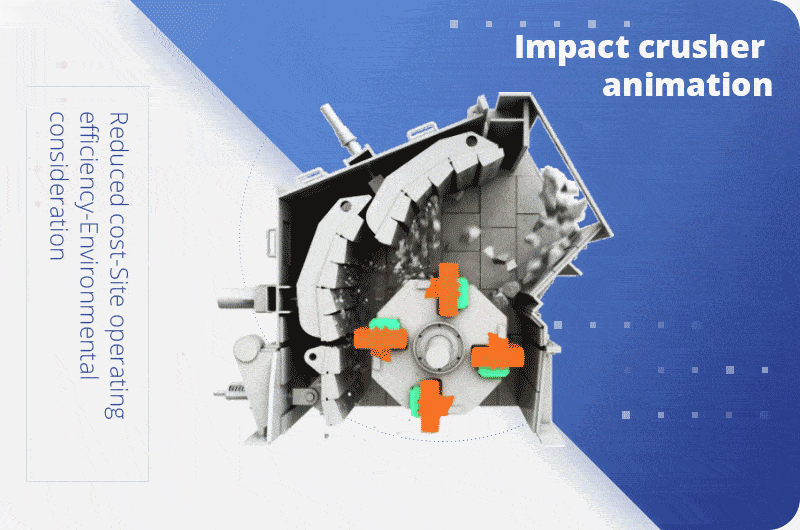

The working principle of impact crusher is that when the material enters the impact crushing chamber, it moves downward and is squeezed and impacted by the material itself due to the friction between the impact plate and the cone and the weight of the material itself. When the material contacts the impact plate, it will rebound and hit the cone, thus achieving the crushing effect.

2. Structure


The structure of cone crusher is simple. It is composed of machine body, frame, universal joint, main shaft, moving cone, cone sleeve, cone pin, locking nut, liner and strew.

The structure of impact crusher is complex, its machine body has two bearing seats, one is composed of several bearings, and the other is connected to the body by the bearing seat. The main shaft of the impact crusher is directly mounted on the frame.




3. Application


Cone crusher is suitable for medium and fine crushing of medium-hard and extra hard materials like virgin rock from quarries. Impact crusher is suitable for crushing soft and hard ores. Impact crusher is generally used in crushing stone production lines. Cone crusher can be used with higher fitness requirements.
