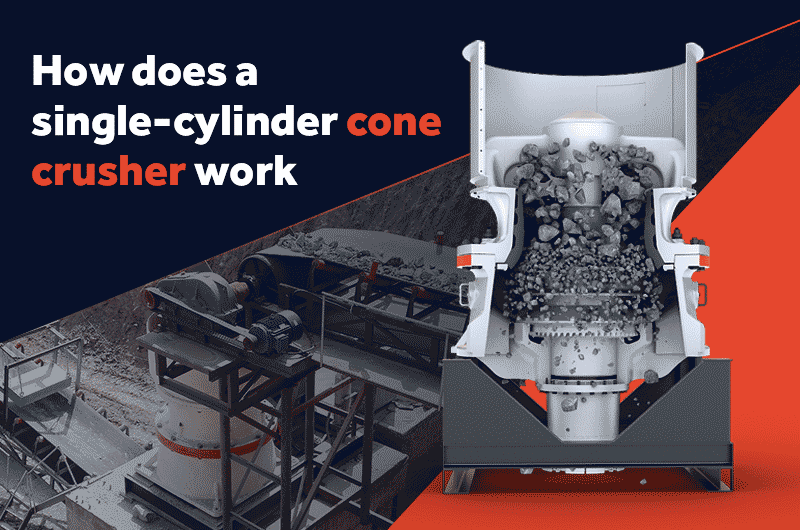

The hydraulic cone crusher drives the pulley or coupling, the transmission shaft and the cone part to make the eccentric shaft perform periodic swing motion under the axis line through the rotation of the motor. After the material enters the crushing chamber from the material inlet, it is crushed by the mutual impact, extrusion, grinding and kneading of the eccentric shaft and the mortar wall. The hydraulic insurance system can remove the faulty objects from the support sleeve and the fixed cone part through the yaw when the machine has an iron failure or a jamming phenomenon, which greatly reduces the maintenance rate and improves production efficiency while playing a good insurance role.







Combining a higher speed with a stroke greatly improves the rated power and throughput.





The result is reasonable operation and reliable operation, low operating cost; all parts of the crusher are wear-resistant and protected, and the service life can be increased by more than 30%. It is used in large stone factories to solve the shortcomings of the impact crusher with a small average crushing ratio, high energy consumption, and fast wear of the hammer head, impact plate and liner.





The special crushing chamber designed by the inter-particle lamination principle and the matching rotation speed replace the traditional single-particle crushing principle to achieve selective crushing of materials, significantly improve the fine material ratio and cubic content of the product, and greatly reduce the needle-like materials.







Hydraulic adjustment of the discharge port and overload protection greatly improve the operation level of the crusher, making maintenance simpler, operation more convenient, and downtime shorter; the hydraulic cone crusher's two-way iron release hydraulic cylinder can allow iron blocks to pass through the crushing chamber. In the case of iron overload and instantaneous jamming, the machine can hydraulically lift the top and automatically discharge, greatly reducing the trouble of the original spring cone crusher needing to stop for manual discharge.







You only need to replace the fixed cone liner and the moving cone liner, and the crushing chamber shape can be changed from the standard super coarse chamber type to the short head super fine chamber type to meet the requirements of a wide range of product particle sizes.





All parts can be disassembled and maintained from the top or side, and the moving cone and fixed cone are easy to disassemble and assemble, without disassembling the frame and tightening the bolts.
