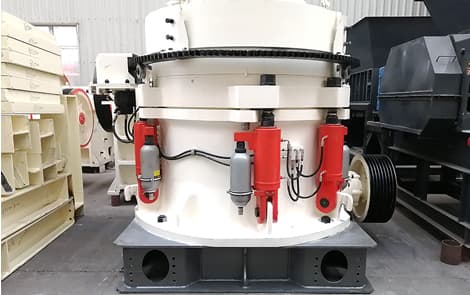

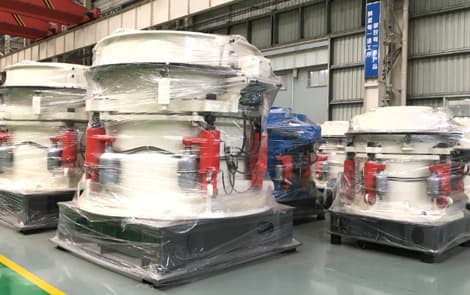

Multi-Cyclinder Hydraulic Cone Crusher

Capacity(t/h): 90-790
Power(kw): 132-630

Buyer Promotion ← September.01-30 Expo 2023 Pay $200 as $300, Pay $300 as $500

Send Inquiry Send Email +86-18595689287

Introduction Video Specification Projects

The multi-cylinder hydraulic cone crusher is developed on the basis of the spring cone crusher. Its basic structure is similar to the spring cone crusher, but the multi-cylinder hydraulic cone crusher is composed of hydraulic cylinders, pistons, brackets and bolts.

Multi-cylinder hydro cone crusher has an unmatched level of crushing performance in general crushing, fine crushing and superfine crushing of various materials from limestone to basalt, from stone production to a variety of ore crushing.

(Application areas)

(Mobile portable Cone crusher >> )

Video of Multi-Cyclinder Hydraulic Cone Crusher:

Advantage

Increase eccentricity and improve processing capacity
Optimize the cavity design and improve the crushing reduction ratio
The liner is thickened to prolong the service life

Technical Data

Model	Type of chamber	Standard		Short head		Power(kw)	Capacity (t/h)
Model	Type of chamber	Feed Opening (mm)	Min.Output size(mm)	Feed Opening (mm)	Min.Output size(mm)	Power(kw)	Capacity (t/h)
HPS200	Coarse	185	19	76	10	132-200	90-255
	Middle	125	17	54	6
	Fine	95	13	23	6
	Superfine	-	-	10	5
HPS300	Oversize	230	25	-		180-250	115-440
	Coarse	210	20	75	10
	Middle	150	15	50	8
	Fine	105	10	20	6
	Superfine	-	-	25	6
HPS400	Oversize	295	30	-	一	280-335	140-630
	Coarse	250	25	90	10
	Middle	195	20	50	8
	Fine	110	14	40	6
	Super fine	一		30	6
HPS500	Oversize	330	30	-	-	355-450	175-790
	Coarse	285	25	90	13
	Middle	200	20	55	10
	Fine	133	16	40	8
	Superfine	一	-	35	6
HPT800	Oversize	353	32			550-630	260-1200
	Coarse	297	32	155	13
	Middle	267	25	92	10
	Fine	219	16	33	6
