Vertical Compound Sand Making Machine

Feeding Size:<190mm
Capacity(t/h):10-180

Buyer Promotion ← September.01-30 Expo 2023 Pay $200 as $300, Pay $300 as $500

Send Inquiry Send Email +86-18595689287

Introduction Video Specification Projects

Vertical shaft hammer sand making machine is mainly used for the second or third level fine crushing. It can process various coarse, medium and fine materials (granite, limestone, concrete, etc.) with a compressive strength of not more than 350MPa. It is widely used in hydropower, high-speed Highway, artificial sand and gravel industries.

The compound crusher can crush large materials, and the discharging granularity can be adjusted at will without the influence of the abrasion of the board hammer and lining plate. It adopts the no-grizzly-bar structure to avoid blocking, which is suitable for crushing materials with much moisture and silt content.

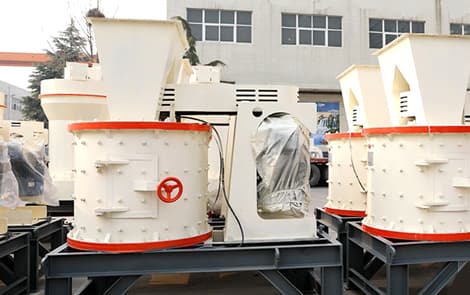

(Compound Crusher)

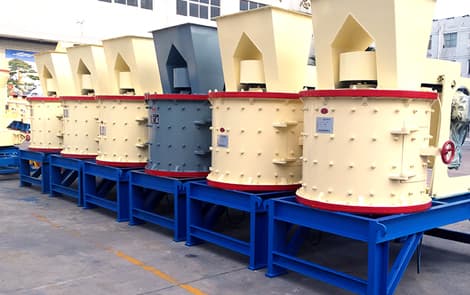

(Compound Crusher)

Video of Vertical Compound Sand Making Machine:

Advantage

Large processing capacity and high output.
The output machine can be increased by about 30%.
Its not affected by the moisture of the material.
Low consumption of wearing parts.
The use of dry oil automatic lubrication reduces the cost of manual maintenance.
Ensures the high efficiency and stability of the sand control machine.

Technical Data

Model	800	1000	1250	1500	1750
Rotor Diameter	650	800	1000	1250	1560
Cylinder Height(mm)	800	850	850	1000	1410
Main Shaft Rotation Speed( r/min)	1350	970	740	650	600
Feeding Size (mm)	50	70	100	100	100
Discharging Size(mm)	0-5	0-5	0-5	0-5	0-5
Processing Capacity(m3/h)	1-3	2-5	4-10	6-12	8-20
Power(kw)	30	55	75	110	132
Motor Rotation Speed	1440	1440	750	750	750
Dimensions(LxWxH)(mm)	2200x860x1980	2700x1160x2000	2800x1400x2730	3350x2100x2800	3100x1900x2300
Totat weight(t)	2.3	4.5	9.73		26.61
