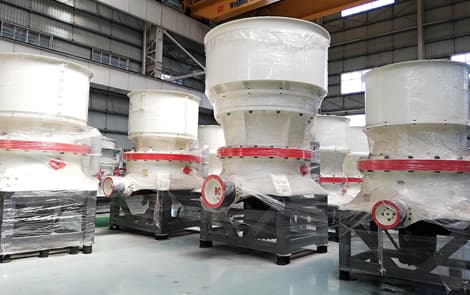

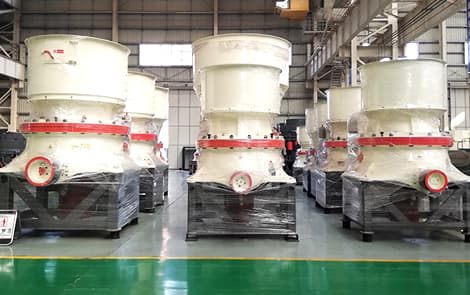

Single-Cyclinder Hydraulic Cone Crusher

Feeding:210-400mm
Capacity:120-600t/h

Buyer Promotion ← September.01-30 Expo 2023 Pay $200 as $300, Pay $300 as $500

Send Inquiry Send Email +86-18595689287

Introduction Video Specification Projects

The single-cylinder hydraulic cone crusher has the characteristics of advanced structural design, excellent crushing capacity, excellent reliability and low production and operation costs.

(Working process)

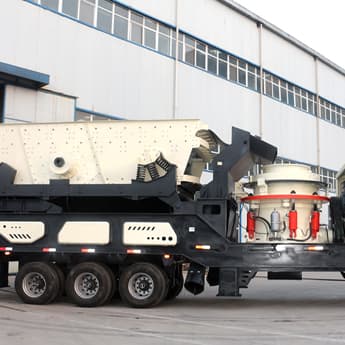

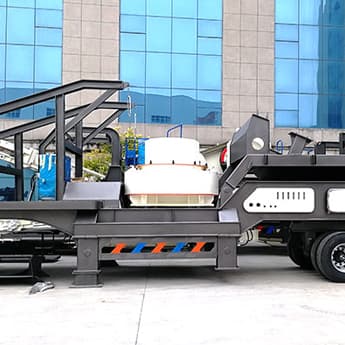

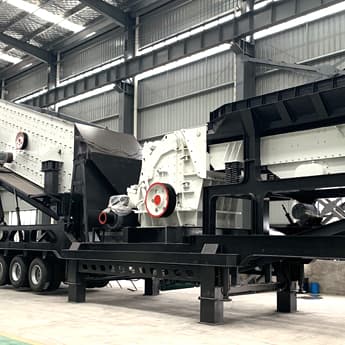

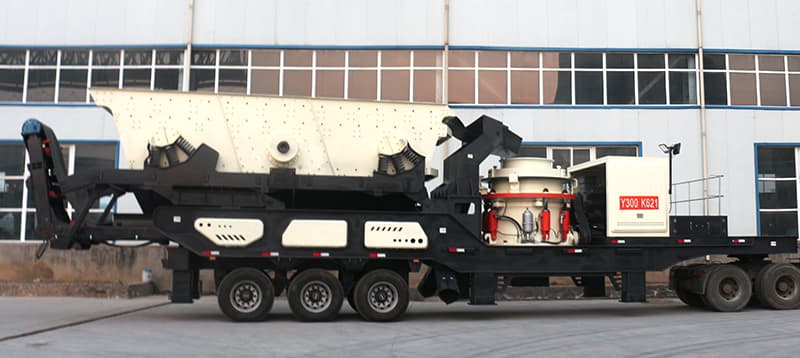

(Mobile portable Cone crusher >> )

Video of Single-Cyclinder Hydraulic Cone Crusher:

Advantage

Low consumption of wearing parts and low operating costs.
Changing the fixed cone can adjust the size of finished production.
The overload protection and hydraulic adjustment discharge port.

Technical Data

Model	Type of Chamber	Feeding size（mm）	Min. output size（mm）	Power （kw）	Capacity （t/h）
Model	Type of Chamber	Feeding size（mm）	Min. output size（mm）	Power （kw）	Capacity （t/h）
DG100	SI-oversize	<240	22	90	85-170
	S2-Middle coarse	W200	19		70-130
	Hl-Fine	<135	10		45-130
	H2-Middle-fine	W65	8		35-80
	H3-Sup er fine	W38	4		27- 60
DG430	SI-oversize	W360	25	160	120-345
	S2-Middle coarse	<300	22		105-305
	S3-Coarse	C235	19		90-275
	Hl-Fine	W185	13		66-210
	H2-Middle-fine	W90	10		65-165
	H3-Superfine	W50	6		4&105
DG440	SI-oversize	W450	35	220	255-605
	S2-Middle coarse	W400	29		215-515
	S3-Coarse	C300	25		190-490
	Hl-Fine	W215	16		110-395
	H2-Middle-fine	W110	13		115-340
	H3-Superfine	W70	8		90-255
DG660	SI-oversize	W560	41	315	335-1050
	S2-Middle coarse	<500	38		305-895
	Hl-Fine	W275	16		170-665
	H2-Middle-fine	W135	16		190- 505
	H3-Sup er fine	W65	13		205-320

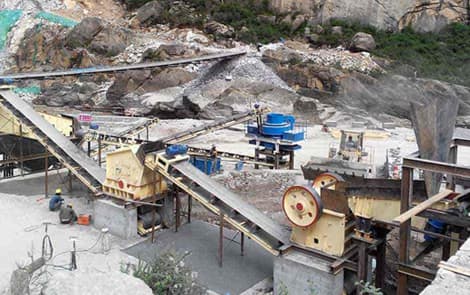

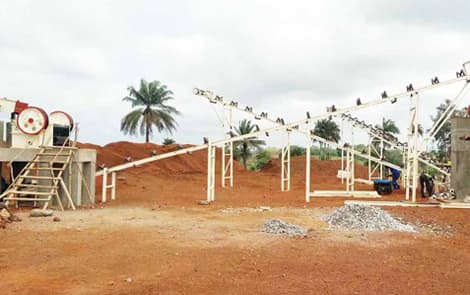

Related Projects
