Gold Ore Crusher

Output Size: 0-40mm
Capacity: 10-900t/h

Buyer Promotion ← September.01-30 Expo 2023 Pay $200 as $300, Pay $300 as $500

Send Inquiry Send Email +86-18595689287

Introduction Video Specification Projects

1. Gold Ore Crusher :

Gold Ore Crusher, also refer to gold stone crusher or gold rock crusher, is used to process gold stone, gold rock, gold ores in gold mining industry. It can be used for primary and fine crushing of the materials.

Common final output size: 0-10mm, 10-20mm, 20-30mm, 30-40mm, etc.
Hot sale capacity: 10-20t/h, 60-100t/h, 150-200t/h, 200-300t/h, 300-400t/h, etc. .

2. Type of Gold Ore Crusher :

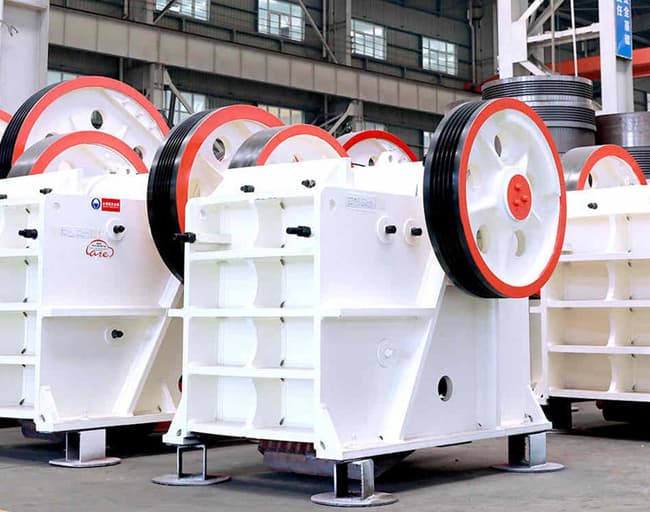

① Jaw crushers are divided into large jaw crushers (>600mm), medium jaw crushers (300-600mm) and small jaw crushers (<300mm) according to the width of the feeding port.

Click Here for Price

↑↑↑

② Hammer crusher is usually used to crush limestone into power. For the cement company, limestone is very important. Sometimes, in order to make the stone into desired shape, we need to use different types of limestone crusher together..

Click Here for Price

↑↑↑

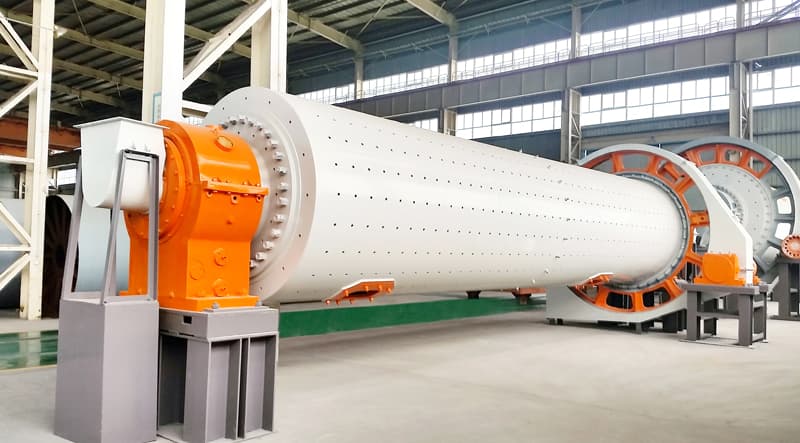

③ Ball Mill The grinding can be done in two ways as "dry" or "wet". Gold grinding plants often apply wet grinding.

Click Here for Price

↑↑↑

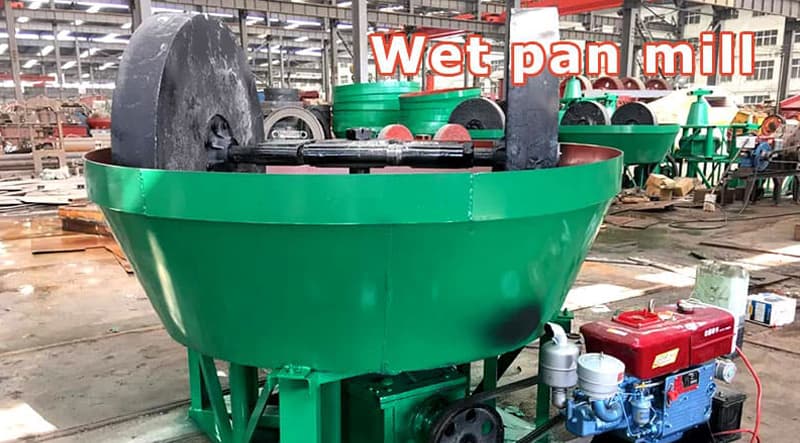

④ Wet Pan Mill Wet pan mill, also called gold grinder mill, is a versatile ore grinding pan mill for processing gold, silver, copper, etc.

Click Here for Price

↑↑↑

Video of Gold Ore Crusher:

Advantage

① Deep crushing cavity which improves capacity.
② High crushing ratio and uniform finished production size.
③ Single jaw crusher can save power 15% - 30%.

Technical Data

Model	Feed openi ng (mm)	Max. Feedi ng size(mm)	Outpu t size(mm)	Capacity (t/h)	Power (kw)	Weight (t)	Overal Dimensi on (mm)
PE-250X400	250X400	200	20-50	5-20	15	3	1430X1310X1340
PEX-250X750	250X750	210	25-60	15-30	22-30	5	1667X1545X1020
PEX-250X1000	250X1000	210	25-60	15-50	30-37	7	1695X1921X1440
PEX-250X1200	1200X250	210	25-60	20-60	37-45	8.5	2192X1900X1950
PEX-300X1300	300X1300	250	20-90	30-90	55-75	11.5	1750X2320X1724
PE-400 x 600	400X600	350	40-100	15-60	30-37	7	1700X1732X1653
PE-500 x 750	500X750	425	50-100	40-110	45-55	12	1950X1878X1855
PE-600 X 900	600X900	480	65-160	90-180	55-75	19	2200X2008X2302
PE-750 X1060	750 X1060	630	80-140	110-320	90-110	29	2624X2302X3110
PE-900 X1200	900X1200	750	95-180	220-450	132	58	3550X2823X3196
PE-1000 X1200	1000X1200	850	95-190	230-500	132	69	3800X3166X3045
PE-1200 X1500	1200X1500	1020	150-300	400-800	220	100.9	4930X3148X3703
PE-1500 X1800	1500X1800	1200	220-350	450-1000	355	132	5630X3210X4120

Click Here for Price

Related Projects

Click Here for Price

Sinogomine factory is the one with almost 20 years of manufacturing experience in manufacturing crushing machinery the total factory area reached 230000 square meters of which the workshop area was 112000 square meters our main products are stone crushers and briquette press machines.
