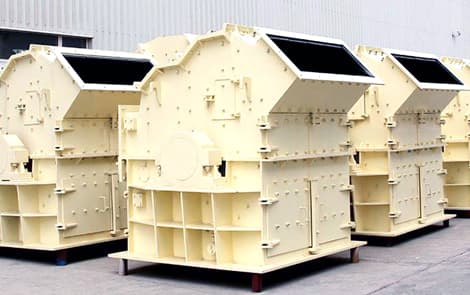

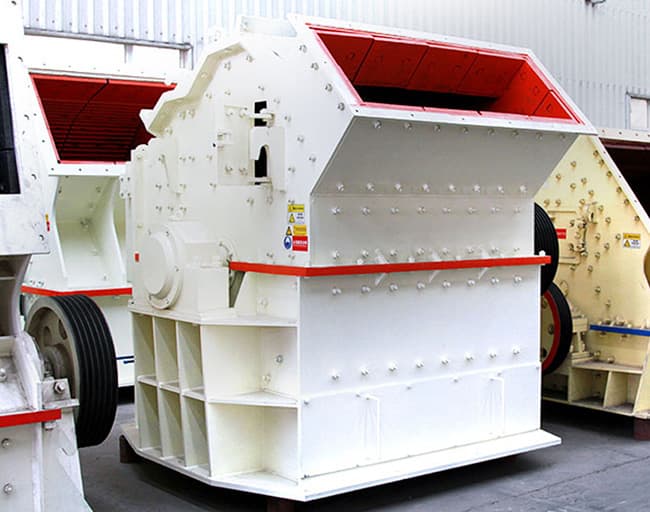

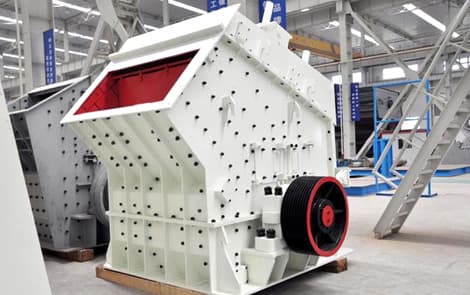

Fine Crusher

Feeding Size (mm): ≤ 190mm
Capacity(t/h): 20-310t/h

Buyer Promotion ← September.01-30 Expo 2023 Pay $200 as $300, Pay $300 as $500

Send Inquiry Send Email +86-18595689287

Introduction Video Specification Projects

The fine crusher is suitable for crushing various brittle materials, and is widely used in machine-made sand and gravel, high-grade highway, railway, water conservancy, airport, construction, cement, refractory, metallurgy and other industries to produce high-quality stone.

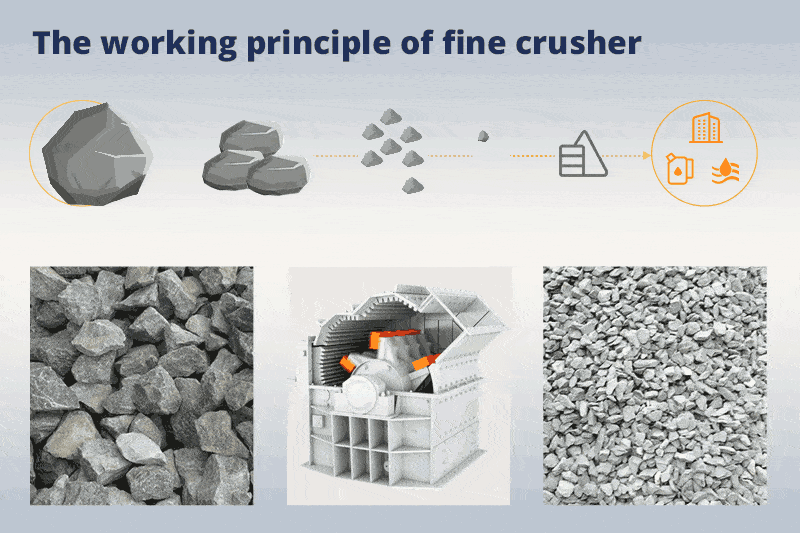

The fine crusher is a continuous operation equipment. During operation, driven by the motor, the rotor rotates at a high speed. The material enters the first crushing chamber and is crushed, collides with the hammer on the rotor, and then enters the second fine crushing chamber for crushing. The material port is discharged.

Video of Fine Crusher:

Advantage

High production efficiency low noise and low dust.
The crushing effect is obvious.
Low return rate.

Technical Data

Model	Feeding size (mm)	Feed Opening (mm)	(mm) Output size	(mm)Adjust range of discharge	(t/h) Capacity	(kw) Power
ZXJ800X400	<120	400X185	W5	5-20	20-45	37・45
ZXJ800X600	<180	500X250	W5	5-20	35-55	45-55
ZXJ800X800	<180	550X330	W5	5-20	35-65	45-55
ZXJ1010X1010	W180	1000X350	W5	5-20	45-75	55-75
ZXJ1200X1000	<180	1200X400	<5	5-20	70-110	90410
ZXJ1200X1200	W180	1200X450	W5	5-20	90-120	110-132
ZXJ1400X1400	<190	1500X500	W5	5-20	100-150	160
ZXJ1600X1600	W190	1600X550	<5	5-20	170-250	250
ZXJ1800X1800	<190	1800X800	W5	5-20	250-310	315
