Belt Conveyor

Capacity(t/h): 25-980
Power(kw): 1.5-22

Buyer Promotion ← September.01-30 Expo 2023 Pay $200 as $300, Pay $300 as $500

Send Inquiry Send Email +86-18595689287

Introduction Video Specification Projects

Belt conveyor is a friction-driven machine that transports materials in a continuous manner.

The belt conveyor is mainly composed of a frame, a conveyor belt, an idler, a roller, a tensioning device, and a transmission device. It can form a material conveying process from the initial feeding point to the final unloading point on a certain conveying line.

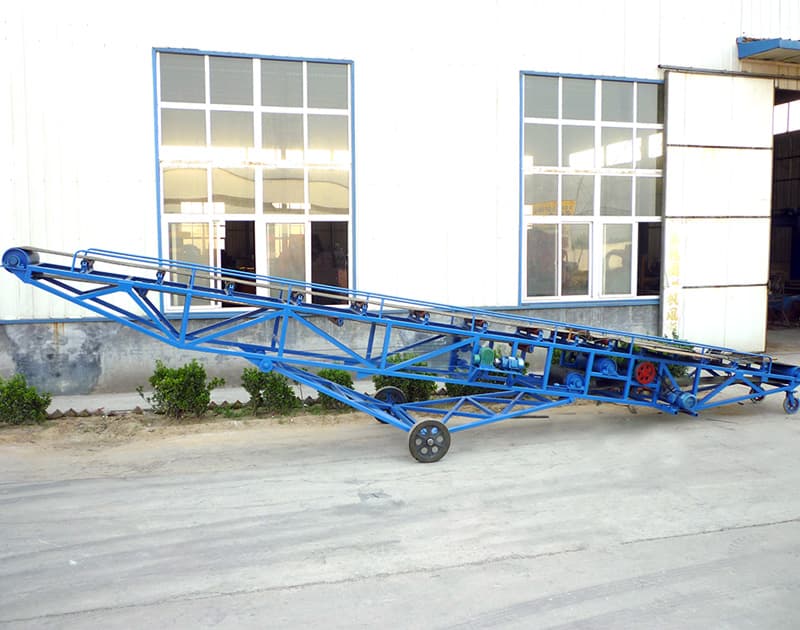

(Belt Conveyor)

Video of Belt Conveyor:

Advantage

Simple operation and maintenance
Strong conveying capacity
Can run continuously

Technical Data

Belt width (mm)	Conveying length (m)				Conveying speed (m/s)	Conveying amount (t/h)
	Power (KW)
500	≤10	10-20	20-30	30-40	1.25-2.0	20-50
	4	5.5	7.5	11
650	≤10	10-20	20-30	30-40	1.25-2.0	40-80
	5.5	7.5	11	15
800	≤10	10-20	20-30	30-40	1.25-2.0	80-200
	7.5	11	15	18.5
1000	≤10	10-20	20-30	30-40	1.25-2.0	150-250
	7.5	15	18.5	22
1200	≤10	10-20	20-30	30-40	1.25-2.0	250-350
	11	18.5	22	30
1400	≤10	10-20	20-30	30-40	1.25-2.0	350-600
	15	22	30	45
1600	≤10	10-20	20-30	30-40	1.25-2.0	500-1000
