It is used for the material re-crushing after the first crushing. The capacity is 1-50 t/h. The maximum feed size is 30 mm, and the output size is 0.074-0.6 mm.
wet pan mill is particularly suitable for grinding rock gold ore, which can be ground into 100-150 mesh. Due to low cost and high production efficiency, some customers from Sudan, Egypt, and South Africa would like to purchase such gold mining machines. The most exciting thing is that you can get pure gold directly after wet grinding, thus it is quite suitable for people who want to begin a small business.
In addition, a wet pan mill is widely used in the separation of ferrous metals, non-ferrous metals as well as non-metallic minerals such as silver, lead, zinc, iron, molybdenum, copper, antimony, cement, silicate products, etc.

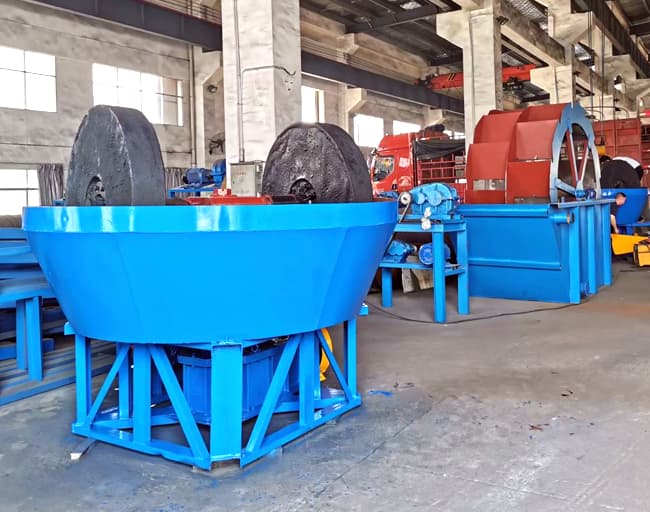

The structure of wet pan mill
The main parts of a wet pan mill are the frame, Water basin, grinding roller, crankshaft, Grinding base, Reducer, and Motor.
Grinding roller: 6% manganese alloy steel, with a service life of at least 3 years.
Ring: Made of standard 85 mm high-manganese alloy steel, which is harder and stronger than the common iron type. And the ring surface is smoother so that it can prevent the holes from absorbing the mercury and gold.
Water Basin is made of 5 mm thick steel plate, with a good welding finish, to ensure that the pan mill works smoothly. In contrast, other water basins on the market have a thickness of 3 mm, which is easy to shake.
How can a wet pan mill separate gold ore?
A wet mill can be used together with a crusher and gravity equipment so that the sorting efficiency is higher.
1. Wet pan mill works with jaw crusher/ hammer crusher
The maximum feeding size of the wet pan mill is 30mm. At first, the gold ore is crushed by a jaw crusher or a hammer crusher. Then it is fed into a wet pan mill for grinding.

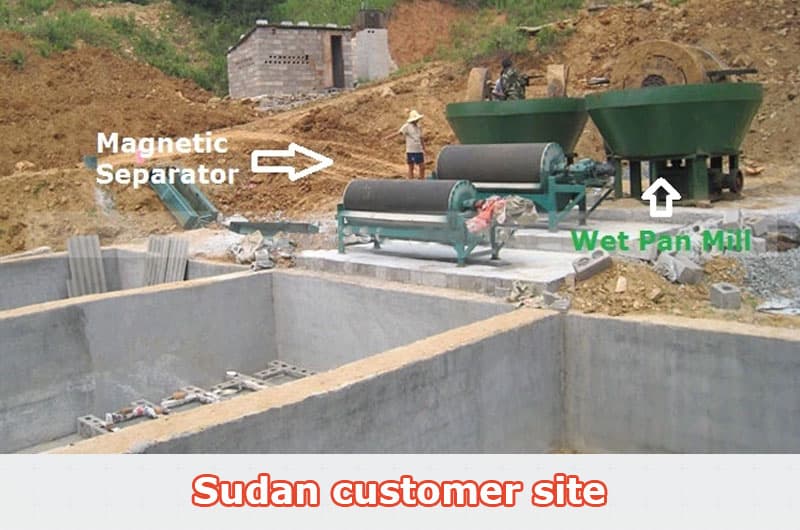

If gold ore contains some magnetic minerals, a magnetic separator will be used to remove the iron or magnetite ores.
Advantage
-
Wet pan mill low investment
-
High output easy use and maintenance
-
Quick cost recovery
Technical Data
| Model |
Gauge (mm) |
Feed Size (mm) |
Engine power (kw) |
Rotation speed (RPM) |
Weight (t) |
| 1600A | 1600×400×200×500±20 | ≤25 | 6-30 | 20-22 | 14.5 |
| 1500A | 1500×350×200×460±20 | ≤25 | 6-22 | 20-22 | 13.3 |
| 1500B | 1500×350×150×460±20 | ≤25 | 6-22 | 20-22 | 12.3 |
| 1500C | 1500×300×150×420±20 | ≤25 | 6-22 | 20-22 | 11.3 |
| 1400A | 1400×250×150×350±20 | ≤25 | 6-18.5 | 16-18 | 8.5 |
| 1400B | 1400×250×150×350±20 | ≤25 | 6-18.5 | 21-23 | 8.5 |
| 1350A | 1350×250×150×350±20 | ≤25 | 6-18.5 | 16-18 | 8 |
| 1350B | 1350×250×150×350±20 | ≤25 | 6-18.5 | 21-23 | 8 |
| 1300A | 1300×250×150×350±20 | ≤25 | 6-15 | 16-18 | 7.5 |
| 1300B | 1300×200×150×350±20 | ≤25 | 4-15 | 21-23 | 7.5 |
| 1200A | 1200×220×80×270±20 | ≤25 | 6-7.5 | 17-19 | 5.5 |
| 1200B | 1200×200×80×250±20 | ≤25 | 6-7.5 | 23-25 | 5.5 |
| 1100A | 1100×200×80×250±20 | ≤25 | 6-7.5 | 17-19 | 5 |
| 1100B | 1100×180×80×250±20 | ≤25 | 4-7.5 | 23-25 | 5 |
| 1000 | 1000×200×80×250±20 | ≤25 | 4-7.5 | 13-15 | 4.5 |
Related Projects
-
( Customers Project in Tanzania) -
( Customers Project in Sudan)
Sinogomine factory is the one with almost 20 years of manufacturing experience in manufacturing crushing machinery the total factory area reached 230000 square meters of which the workshop area was 112000 square meters our main products are stone crushers and briquette press machines.
-
( Sinogomine Factory ) -
( Sinogomine Factory )
