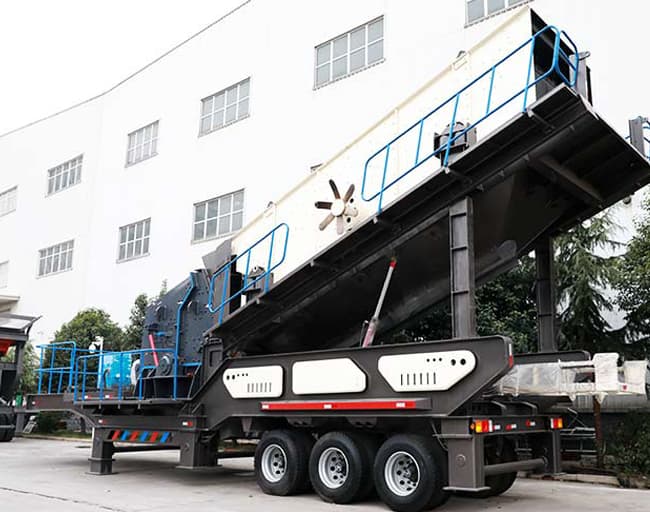

Mobile Screening Plant
- Capacity (t/h): 85-650
- Weight(t): 34-62
The mobile crushing station is mainly used in construction projects, highways, railways, hydropower projects and other mobile stone operations, especially in urban demolition and construction waste treatment projects.
The mobile crushing station is flexible, convenient and highly maneuverable, which can save a lot of infrastructure and relocation costs; it can crush materials on site and move with the advancement of the raw material mining surface, thereby greatly reducing the transportation cost of materials. The classification of mobile crushing stations mainly includes: mobile jaw crushing station, mobile impact crushing station, mobile cone crushing station, impact mobile crushing station, mobile screening station, crawler hydraulic drive mobile station and tire mobile crushing station.
Video of Mobile Screening Plant:
Advantage
-
Strong mobility and strong adaptability.
-
Integrated complete unit and flexible combination.
-
Reduce the cost of material transportation.
Technical Data
MOBILE JAW CRUSHER TECHNICAL PARAMETERS | ||||
Model | GM938HD80 | GM1149HD98 | GM1349HD110 | GM1349HD125 |
Jaw Crusher | HD80 | HD98 | HD110 | HD125 |
Maximum Feeding Size (mm) | 500 | 550 | 660 | 800 |
Capacity (t/h) | | 85-275 | 110-350 | 215-510 | 280-650 |
CONE CRUSHER & VIBRATING SCREEN TECHNICAL PARAMETERS | |||
Model | GM3S154PSG09 | GM3S185PSG130 | GM3S216HP300 |
Weight(t) | 34.5 | 49.5 | 41 |
Cone crusher | PSG09 | PSG130 | HP300 |
Discharging belt conveyor | B650x 15M x2 | B800x 15Mx2 | B800x 15Mx2 |
MOBILE IMPACT CRUSHER TECHNICAL PARAMETERS | ||||
Model | GM938F1210 GM938FW1214 | GM1149F1315 | GM1349HD1110 | |
Weight(t) | 39 | 44 | 54 | 62 |
Tire Configuration | PF-1210 | PF-1214 | PF-1315 | HD1110 |
The Maximum Feeding Size(mm) | 350 | 350 | 500 | 400 |
Capacity(t/h) | 70-130 | 100-180 | 130-250 | 112 |
IMPACT CRUSHER & VIBRATING SCREEN TECHNICAL PARAMETERS | |||||
ModelGM | 3S184F210 | GM3S185F214 | GM3S216F315 | GM3S184HD1110 | |
Tyre Configuration | biax fitted | triaxial fitted | triaxial fitted | triaxial fitted | |
Impact crusher | PF-1210 | PF-1214 | PF-1315 | HD 1110 | |
Note: processing capacity may vary with different materials and feeding sizes. |
