Slag Mill

Capacity(t/h): 0.65-90
Feeding Size (mm): 0.074-0.89

Buyer Promotion ← September.01-30 Expo 2023 Pay $200 as $300, Pay $300 as $500

Send Inquiry Send Email +86-18595689287

Introduction Video Specification Projects

The steel slag ball mill is a special equipment for steel slag processing, and is a key equipment in the comprehensive development and production line of steel slag that turns waste into "treasure". According to the characteristics of steel slag and the needs of steel enterprises, our company has carefully developed and launched the steel slag ball mill, which can realize the processing and comprehensive utilization of steel slag.

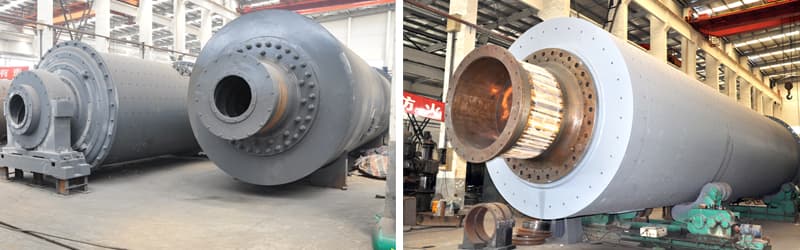

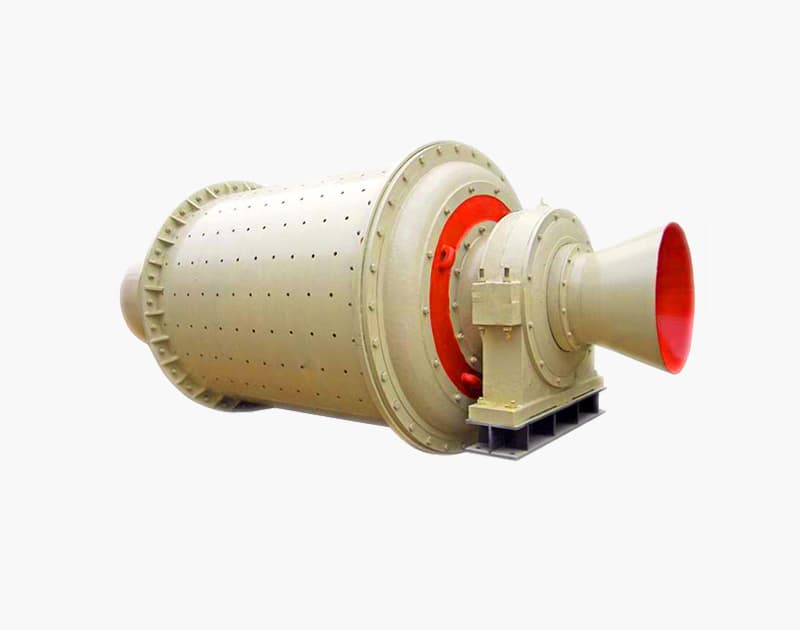

(Slag Mill)

Video of Slag Mill:

Advantage

Low pollution.
Energy efficient.
Turning waste into treasure.

Technical Data

Model	Rotational speed(r/min)	Balls weight(t)	Feeding Size(mm)	Output size(mm)	Capacity(t/h)	Power(kw)	Weight(t)
Ф900×1800	42	1.4	≤20	0.075-0.89	0.65-2	18.5	3.6
Ф900×2100	41	1.7	≤15	0.075-0.83	0.7-3.5	15	3.9
Ф900×3000	41	2.7	≤20	0.075-0.89	1.1-3.5	22	4.5
Ф1200×2400	36	3.5	≤25	0.075-0.6	1.5-4.7	30	11.5
Ф1200×2800	31	6.8	≤25	0.075-0.6	1.5-5	37	13
Ф1200×4500	32	5.5	≤25	0.074-0.4	1.6-5.8	55	13.8
Ф1500×3000	31	6.8	≤25	0.074-0.4	2-7	75	17
Ф1500×4500	27	10.5	≤25	0.074-0.4	3.5-8	110	21
Ф1500×5700	27	15	≤25	0.074-0.4	3.5-10	130	24.7
Ф1830×3000	26	13	≤25	0.074-0.4	4-12	160	28
Ф1830×3600	26	15	≤25	0.075-0.4	5-13	160	33.5
Ф1830×4500	26.5	17	≤25	0.075-0.6	5.5-20	185	35
Ф1830×7000	26	25	≤25	0.074-0.4	6.5-22	210	36
Ф2100×3600	24	21	≤25	0.074-0.4	6.5-22	185	46.8
Ф2200×5500	21	30	≤25	0.074-0.4	10-20	245	48.5
Ф2200×6500	21.7	35	≤25	0.074-0.4	14-26	380	52.8
Ф2200×7500	21	33	≤25	0.074-0.4	16-30	380	56
Ф2400×3000	20.6	30	≤25	0.075-0.4	15-50	245	59
Ф2400×4500	21	33	≤25	0.074-0.4	15-60	380	65
Ф2700×3600	20.6	39	≤25	0.074-0.4	20-70	400	91.3
Ф2700×4000	20.7	40	≤25	0.074-0.4	20-80	400	94
Ф2700×4500	20.7	48	≤25	0.074-0.4	20-90	430	102
Ф3200×4500	18	65	≤25	0.075-0.4	按工艺条件定	800	137
