Bucket Elevator

Weight (kg/m): 22-223
Capacity(t/h): 32-1327

Buyer Promotion ← September.01-30 Expo 2023 Pay $200 as $300, Pay $300 as $500

Send Inquiry Send Email +86-18595689287

Introduction Video Specification Projects

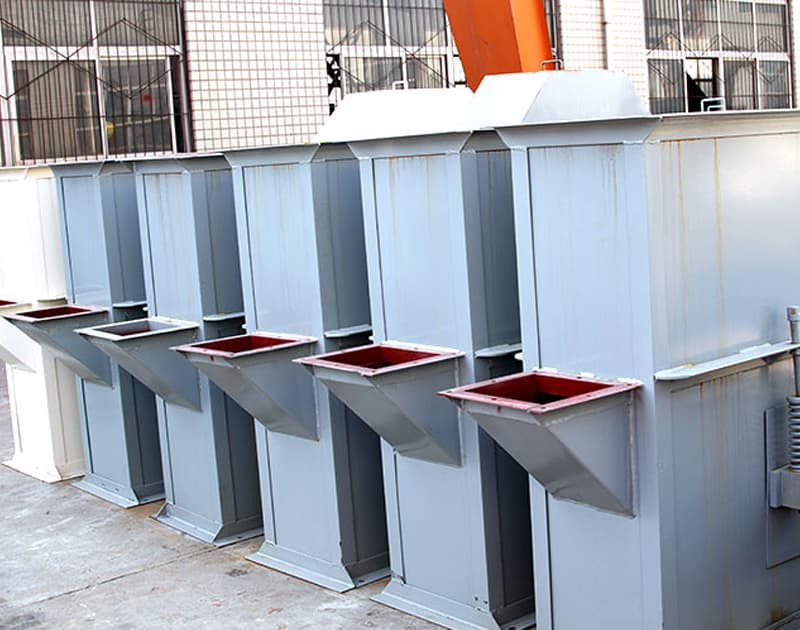

Bucket elevator is an important device used for vertically conveying the particular materials. And it is characterized by large conveying volume, high lifting height, stable running, easy operation and maintenance and long service life, etc. Besides it is widely used in transportation system of building construction, chemical industry,, mining, power station and port transportation, etc. And it is suitable for conveying various powders, granular and block materials with the temperature below 150℃.

Video of Bucket Elevator:

Advantage

High elevated height can reach 100m
Vast range of application
Little vibration and fine sealing performance
Long service life and reliable operation
Small power and little consumption Simple maintenance
Low power required effective inflow feeding & guiding discharge

Technical Data

Model	Capacity (m/h)	Hopper		Weight (kg/m)	Running speed (m/s)	Height (m)
Model	Capacity (m/h)	Volume(L)	Hopper distance (mm)	Weight (kg/m)	Running speed (m/s)	Height (m)
TDG160	32	2.6	260	22	1.2	80
TDG200	45	4.1	300	21.5	1.2	80
TDG250	72	6.5	325	33	1.34	80
TDG315	101	10	360	33.2	1.5	80
TDG400	158	16	420	42.2	1.5	80
TDG500	220	25	460	62.3	1.5	80
TDG630	348	40	520	78.53	1.68	80
TDG800	492	64	580	106	1.65	80
TDG1000	788	102	650	145	1.86	80
TDG1250	1220	161	720	155.5	1.86	80
TDG1600	1541	255	820	223	1.86	80
